AISI440C Shielded Ball Bearing

Product Categories
Fuzhou Zoomland Import and Export Trade Co.,Ltd
Contact Now

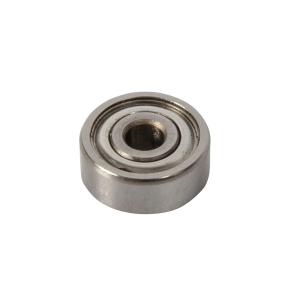

AISI440C Shielded Ball Bearing

  • 1
  • 2

Brand Name : SGC

Model Number : SS16000 Series

Certification : RoHS

Place of Origin : Fuzhou, China

MOQ : 100 PCS

Price : Get The Latest Price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 100000PCS per month

Delivery Time : 10-45 days upon receipt of official order

Packaging Details : plastic tube+box, or according to requested by clients

Races : AISI440C Stainless Steel

Balls : AISI440C Stainless Steel

Hardness : HRC58-62

Cage : 304 SS

Seals Type : Open, ZZ, 2RS

Accuracy : ABEC-1, ABEC-3

Vibration : Z1,Z2, Z3

Radial Play : C0, C3

Bore size : 12 mm-100 mm

Outside diameter : 28 mm-150 mm

Width : 7 mm-16 mm

Number of row : Single Row

Structure : Deep Groove

Lubrication : Shell Alivania R2, ESSO Beacon 325, Chevron SRI-2, Mobil 28, Kluber, Kyodo Yushi, etc.

Feature : Corrosion Resistance

Package : Industrial packing or as per requirement

Product name : SS16000 Series Ball Bearings

Sample : by free

Contact Now

Shielded Bearing with Anti-Rust Stainless Steel Balls for Chemical Processing Machinery

Open/Seals/Shields Type - Anti-Corrosion

Materials: AISI440C Stainless Steel

Hardness: HRC58-62

Preccision Grade: ABEC-1, ABEC-3

Vibration: Z1,Z1, Z3

Bore Size: 12mm - 100 mm

OD: 28 mm - 150 mm

Width: 7 mm - 16 mm

Applications:

The bearings are widely used on ocean engineering equipment and ship, food processing machinery, medical equipment, cryogenic engineering, automobile, motorcycle, electric tools, high-speed motor, household appliances and other industries.

Lubrications:

Before SGC bearings leave factory,the open bearing is filled with meter anti-rust oil only;while the shielded bearing has been filled with general bearing grease,which makes it suitable for light and medium load as well as low and medium speed applications, with a working temperature ranging from -30℃～100℃.If the bearings are applied beyond the above conditions, other special grease or lubricating methods shall be employed.

Bearing No. Boundary dimensions Load Rating(KN) Weight Open
Dynamic Static
d D B Rmin
SS16001 12 28 7 0.3 5.08 2.38 0.019
SS16002 15 32 8 0.3 5.6 2.55 0.025
SS16003 17 35 8 0.3 6.82 3.38 0.027
SS16004 20 42 8 0.3 7.9 4.45 0.05
SS16005 25 47 8 0.3 8.42 5.15 0.06
SS16006 30 55 9 0.3 11.2 6.25 0.085
SS16007 35 62 9 0.3 11.5 8.8 0.1
SS16008 40 68 9 0.3 12.5 10.2 0.13
SS16009 45 75 10 0.6 12.8 10.2 0.17
SS16010 50 80 10 0.6 16.2 13.2 0.18
SS16011 55 90 11 0.6 19.4 16.2 0.26
SS16012 60 95 11 0.6 19.9 17.5 0.28
SS16013 65 100 11 0.6 20.5 18.6 0.3
SS16014 70 110 13 0.6 27.9 25 0.43
SS16015 75 115 13 0.6 28.7 26.8 0.46
SS16016 80 125 14 0.6 33.1 31.4 0.6
SS16017 85 130 14 0.6 34 33.3 0.63
SS16018 90 140 16 1 41.5 39.3 0.85
SS16019 95 145 16 1 42.7 41.9 0.89
SS16020 100 150 16 1 43.8 44.3 0.91

Company Brand

Designation Dropping tem. Penetration Woring Tem. Remarks
Shell Alivania RL2 185 265-295 -35~120 General purpose
Alivania RL3 185 220-250 -35~135
Alivania RA 180 250-275 -25~100
Alivania EP1 180 310-340 -25~110
Alivania EP2 185 265-295 -25~110
Darina 2 250 265-295 -25~150 high Tem. service
Darina EP2 250 265-295 -25~150
Dolium R2 250 265-295 -35~150 corrosion resistnat
Esso Andok C 260 190-210 -30~120 General purpose
Andok 260 190 204-260 -40~120
Beacon 325 190 255-280 -54~120 low Tem. service
Chevron SRI-2 240 255-280 -30~120 water resistnat
Mobil Moilux 2 190 265-290 -10~110 General purpose
Mobil 22 192 260-274 -40~120
Mobil 28 260 265-295 -55~175 wide range Tem. service
Mobil 48 260 240-270 -60~170 high Tem. service
Kluber Isoflex LDS 18 190 255-280 -50~110 low Tem. service
Isoflex NBU 15 250 255-280 -30~120 General purpose
Kyodo Yushi Multemp SRL 185 225-245 -40~145 low torque service
Multemp PS2 190 250-275 -50~110 low Tem. service
Multemp ET150 260 255-280 -10~160 　
China Hangu Hangu 2 198 265-295 -10~130 low noise service
